Laser Doppler Vibrometer

• Highly Integrated, based on Photonics Integrated Circuit (PIC)
• Smart Sensor, Built-in DSP for signal processing
• Ethernet Interface
• Supreme DC performance as a Displacement Sensor 5Msps,
• Full Scale Velocity Range 20m/s
• Dual Laser (1310nm Measurement, 655nm Indicator)
• Sync-ed with Trig IN & OUT
• With both Digital and Analog Output
• Provide User SDK for Control Software Customization

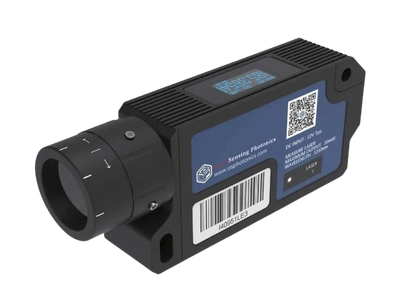

MotionGo is a miniature-size full-featured laser vibrometer with a built-in data processing unit.

MotionGo supports both digital output and analog output at the same time. The data sampling rate is 5M sps, which can accurately test vibration signals from DC to 2.5MHz. MotionGo is equipped with a complete set of lens systems, which supports the target distance from 5cm to 40 meters. The focus of these lenses are all manually adjustable.

As an intelligent measurement unit, MotionGo supports large-scale networking interconnection. It is equipped with synchronous input and output port.

MotionGo can also accept external trigger signals,  supporting synchronous measurement together with other types of sensors. MotionGo also supports analog signal output, which can be easily connected with data acquisition cards, and enable the system upgrade of a traditional vibration testing system with non-contact measurement capability.

MotionGo has excellent noise performance, and supports testing up to 40 meters away, Based on patented algorithms and excellent quality control, MotionGo also has excellent DC performance and can be used as an accurate displacement sensor with a meter scale displacement range.

To sum up, MotionGo can be widely used in many areas, such as aerospace material testing,

structural mechanics testing, semiconductor micro-electromechanical testing, ultrasonic

material testing, new energy processing, etc.
